SUS304 Negative Pressure Laminar flow Sampling Booth For Raw Material Cleanroom Equipment
CUSTOMIZED DESIGN IS AVAILABLE
Product Features:
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14
and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Introduction:
Dispensing booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
Products Parameter:
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
| External size (mm) (W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
| Work zone (mm) (W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
| Purification rank | Class 100(ISO5) |
| Air speed | 0.45m/s +_20% |
| Material (Option) | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
| Control system | 1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
| Noise level(dB) | <65dB |
| Filter step | 3 Step |
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter |
| Secondary filter | F8 pocket air filter |
| Pre-filter Efficiency | G4 Z-Line panel air filter |
| Power supply | 380V/50HZ OR 220V/50HZ |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) |
Application:
Dispensing booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

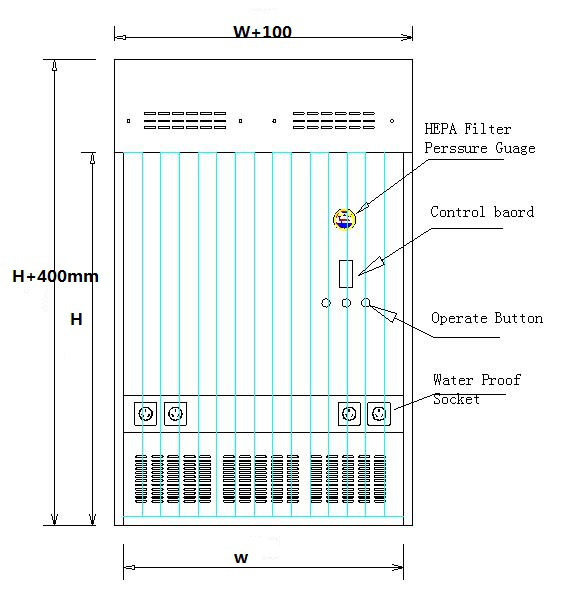

Draw:
Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
